Driver Servo Minas A4
Product Code
Price
Contact
CONTACT FOR QUOTE
Share :
Product description
PRODUCT SPECIFICATIONS PRODUCT

Specifications:

Max current    10A
  Rated curent    7.5A
Power supply  Main   1 phase 200-240VAC 50/60Hz
Control   1 phase 200-240VAC 50/60Hz
 Control Method    SinPWM uses IGBT
  Encoder Resolution   17 bit encoder absolute/incremental
  Incremental Encoder 10.000 pulses/rotation
Position Control

 Open Collector

Line Driver

 sign+pulse train
cw+ccw pulse train
2 phase pulse train
 Speed

   Open Collector pulse train :  200kpps

  Line Driver pulse train: 2Mpps
Speed Control    Analog input Voltage  6VDC/ rated speed
  Internal speed    Supports 8 speed levels
  Soft start and stop   (  0s - 10s)
Torque Control   Analog input     3VDC/ Rated torque
  Communication Port   RS-232   Connect to 1 Host device
   RS485   Connect up to 15 devices
Digital pin    Digital input (DI)   10 DI
 Digital output  (DO)   6 DO
  Analog pin    Analog input (AI)   3 AI
 Analog output (AO)   2 AO
Pulse pin  input pulse    2
output pulse    4

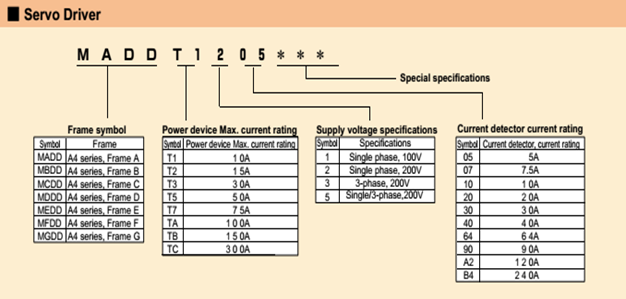

Model servo driver A4 series:

  • MADDT1205
  • MADDT1207
  • MBDDT2210
  • MCDDT2520
  • MDDDT3530
  • MDDDT5540
  • MEDDT7364
  • MFDDTA390
  • MFDDTB3A2
  • MGDDTC3B4
