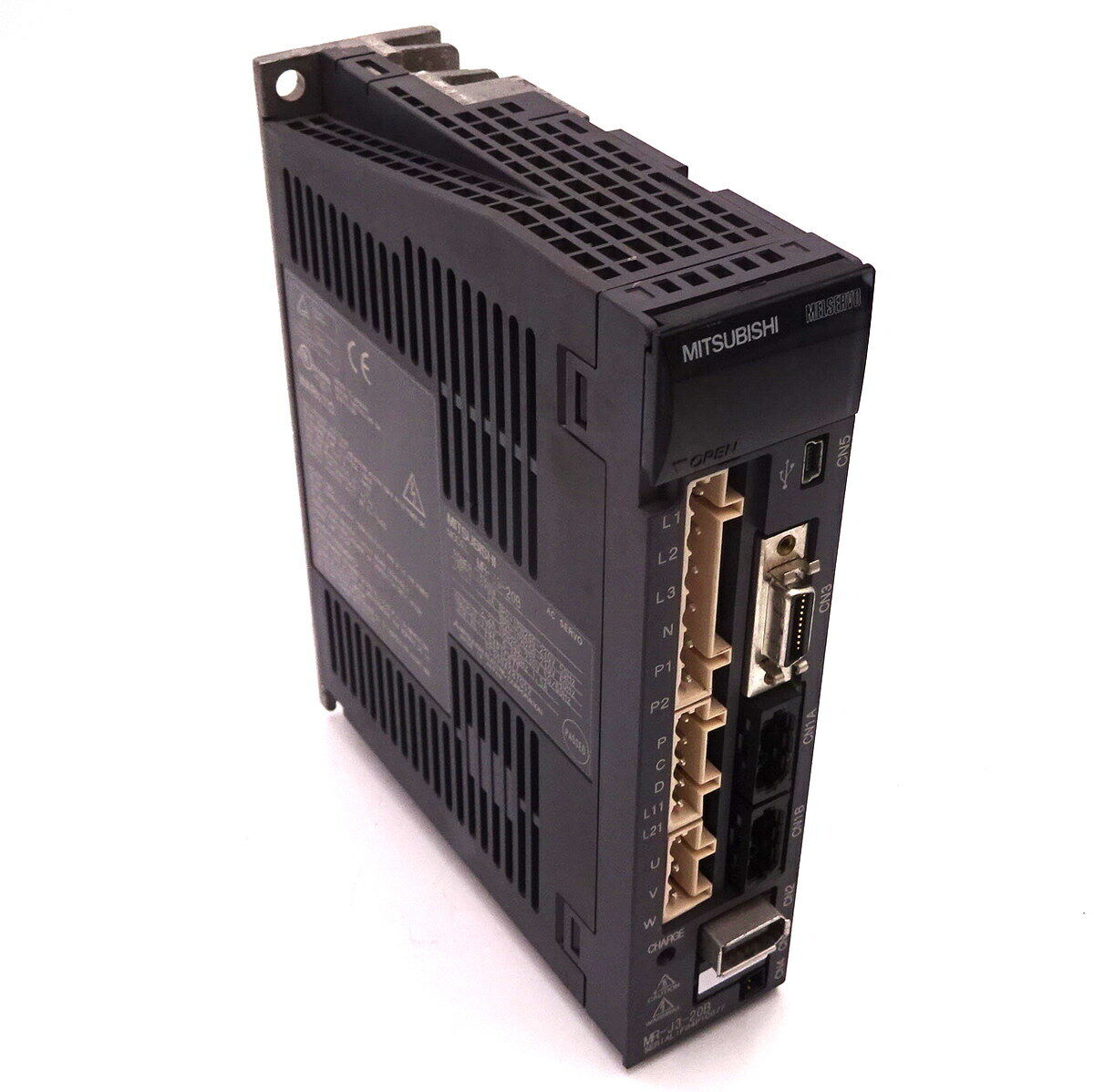

Driver Servo Mitsubishi MR-J3
Product Code
MR-J3
Price
Contact
Mitsubishi MR-J3 Servo belongs to the high-end Servo series used for general purposes with a voltage of 200-230VAC, 50/60Hz. In addition to using the same pulse chain and input for control placement, SSCNET III and CC-Link fiber optic connections can be used for fast response speed and easy multi-axis splicing. The user can select the position, speed, or torque control mode. The performance of the machine can be enhanced by the use of optimal tuning functions such as advanced vibration suppression control and adaptive filters along with an 18-bit encoder feedback from the motor.
CONTACT FOR QUOTE
Share :
Product description
PRODUCT SPECIFICATIONS PRODUCT
Specifications:
  • Power : 100W - 22kW
  • Power supply: 1 phase 200VAC or 3 phase 200VAC
  • Control Method: Pulse Width Modulation (PWM)/Current Adjustment
  • Control modes: Position/Speed/Moment Control (P-S-T).
  • Encoder Resolution: 18 bits (262,144 P/rev).
  • Support communication connection via SSCNET III (MR_J3-B), CC-Link (MR-J3-T) fiber optic cable
  • Connecting to a computer: MR-J3USBCBL3M cable
  • Monitoring and parameter setting software: MR Configurator 2
  • IP67 standard, water resistance, dust resistance
  • Manufacturer: Mitsubishi, Japan.

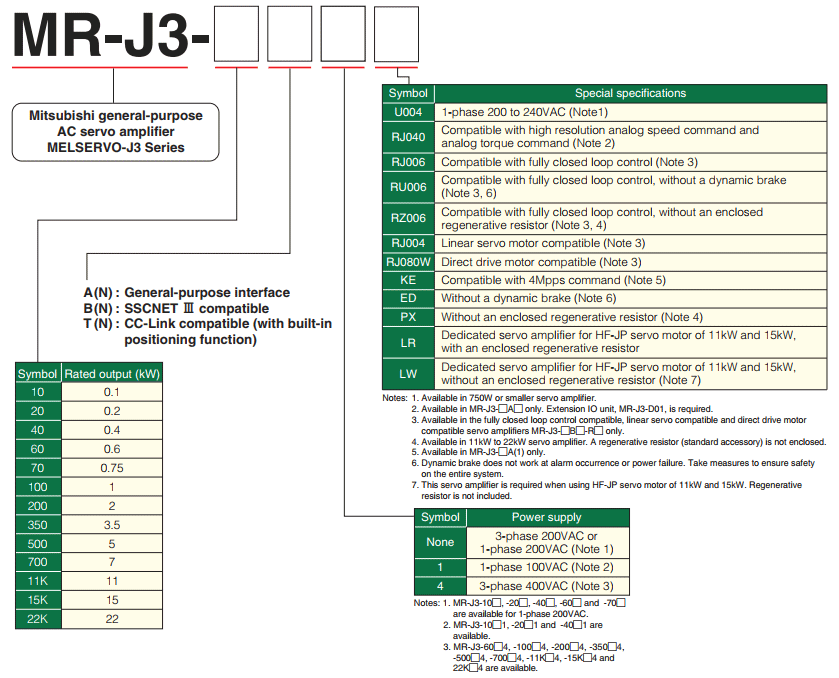

Model:

MR-J3-10A

MR-J3-10B

MR-J3-10T

MR-J3-20A

MR-J3-20B

MR-J3-20T

MR-J3-40A

MR-J3-40B

MR-J3-40T

MR-J3-60A

MR-J3-60B

MR-J3-60T

MR-J3-70A

MR-J3-70B

MR-J3-70T

MR-J3-100A

MR-J3-100B

MR-J3-100T

MR-J3-200A

MR-J3-200B

MR-J3-200T

MR-J3-350A

MR-J3-350B

MR-J3-350T

MR-J3-500A

MR-J3-500B

MR-J3-500T

MR-J3-700A

MR-J3-700B

MR-J3-700T
